PearTune MSO Tuning e-bike Shimano EP8

Detailed product description:

PearTune is connected to the e-bike system with compatible and original connectors. The  MSO  does  not  need  to  be  configured  manually.  The  entire configuration and adaptation to the paticular e-bike is done automatically. The  MSO  is  connected  in  between  the  magnetic  speed  sensor  and  the motor  unit,  and  in  between  the  display and  the  motor  unit.  MSO  is powered from the display connector. All readings like actual speed, max speed, average speed, distance etc. are correctly displayed. The MSO is activated with LIGHT funkcion (in the case that you CONNECT the RED cable from PearTune MSO) OR automatically WITH ACTIVATION YOUR E-BIKE (in the case that you DON´T CONNECT the RED cable from PearTune MSO). Thanks to original connectors the e-bike tuning can be deinstalled without any signs and original Shimano diagnostics (highest level) did not find any signs of the device after removal.The only difference is that from the moment of installation you, not your bike, determine how fast you go. The maximum speed is limited only by the pedaling frequency.

Usage

The MSO can be activated or deactivated anytime by light control function of the bike menu. Refer to the bike manual.

Note that the light control function of the e-bike can be accessed with a diagnostic device or E-TUBE. Most workshops are equipped with these devices and can activate the lighting control. If the light control is not active, an alternative version of PearTune MSO can be used, which is automatically active when the wheel is switched on.

Installation procedure - download here

PT-MSO-SH-EP8

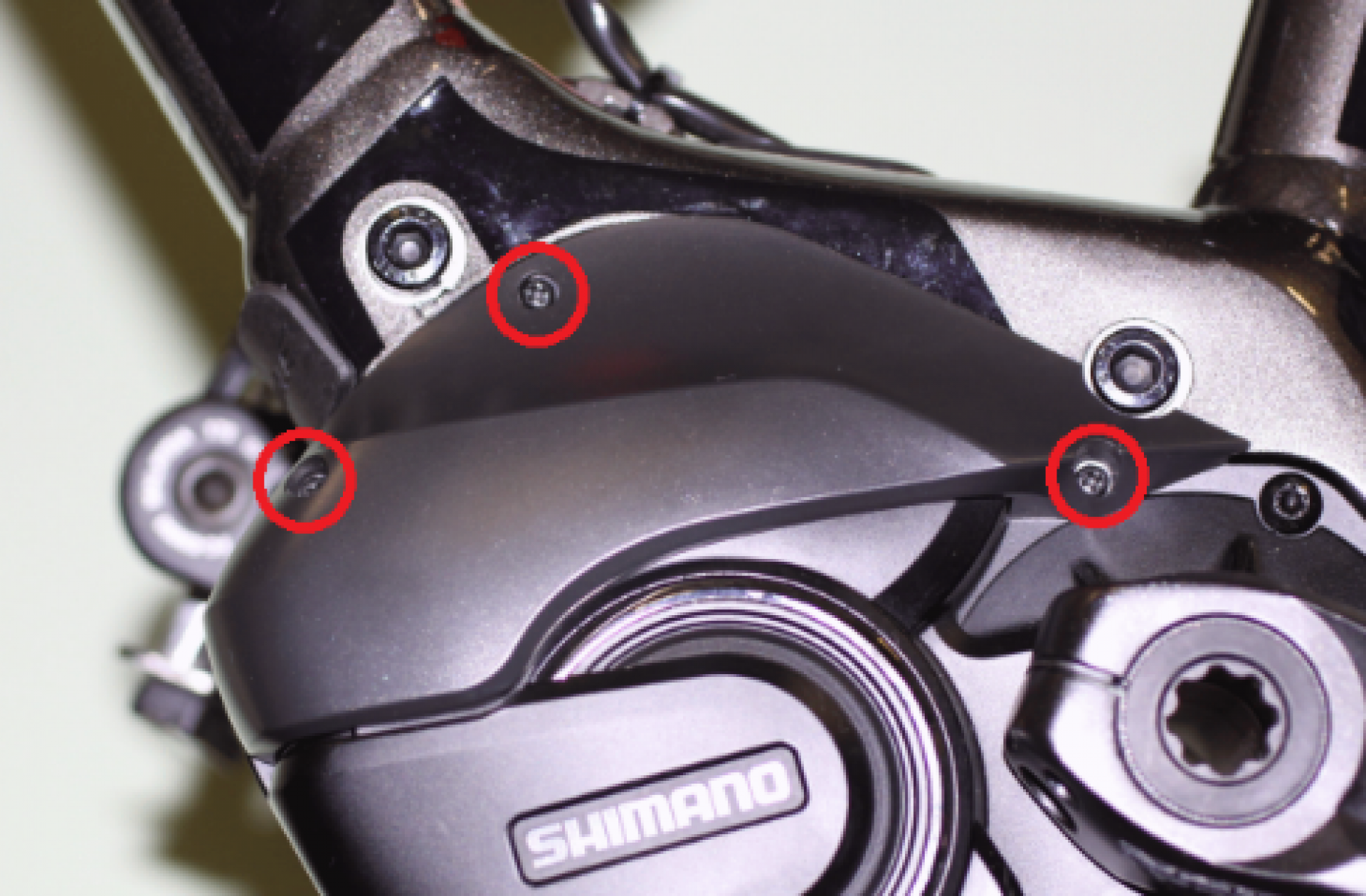

① Unscrew three screws marked by red ring and remove the plastic cover of the centerdrive. All necessarry cables and connectors are placed under this cover. Covers are provided in various shapes and colours and the cover may differ from the picture.

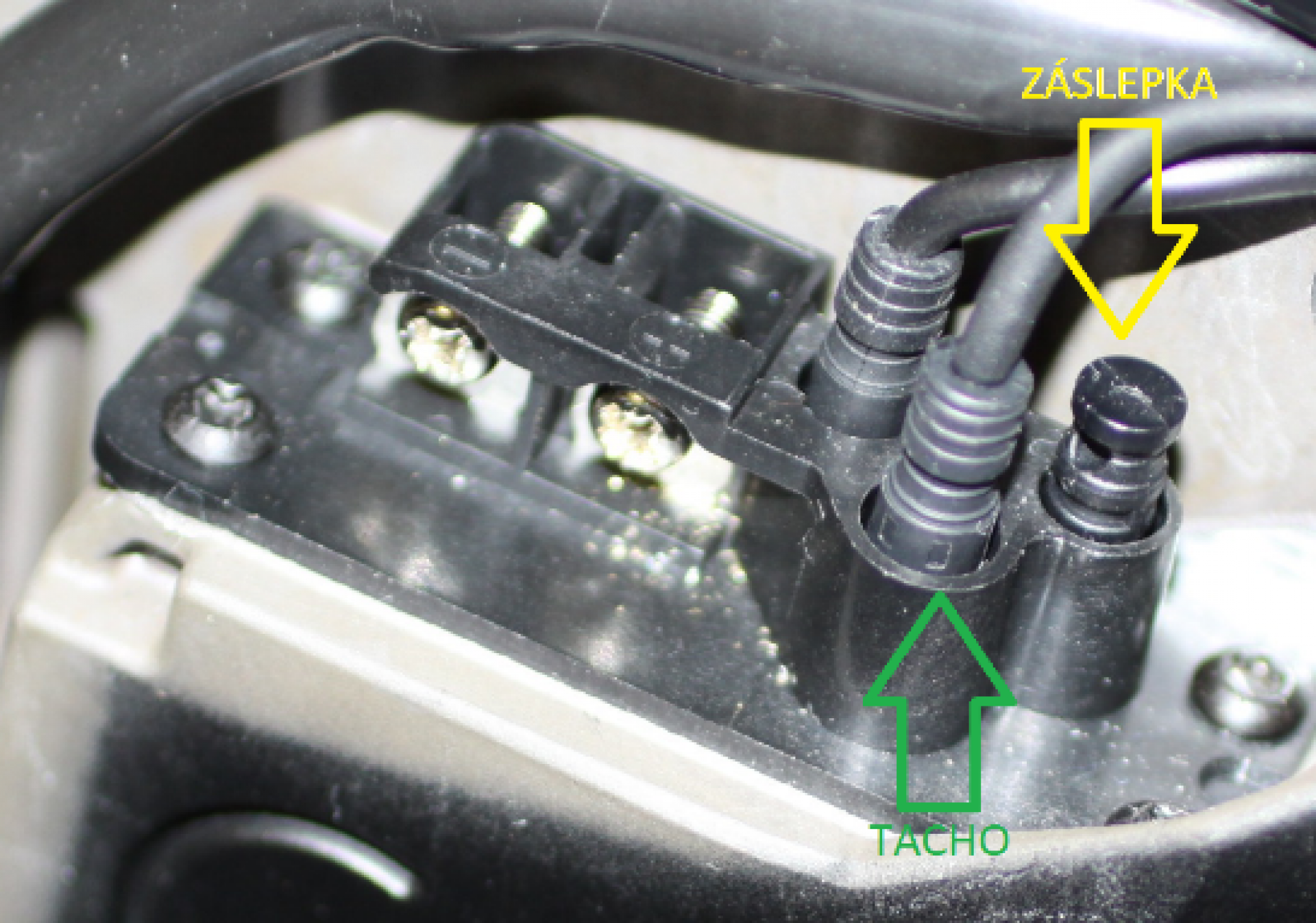

② Disconnect the connector between the motor unit and tacho sensor (marked by green arrow in the picture). Release the screw of positive (+) light clamp (marked by red arrow in the picture).

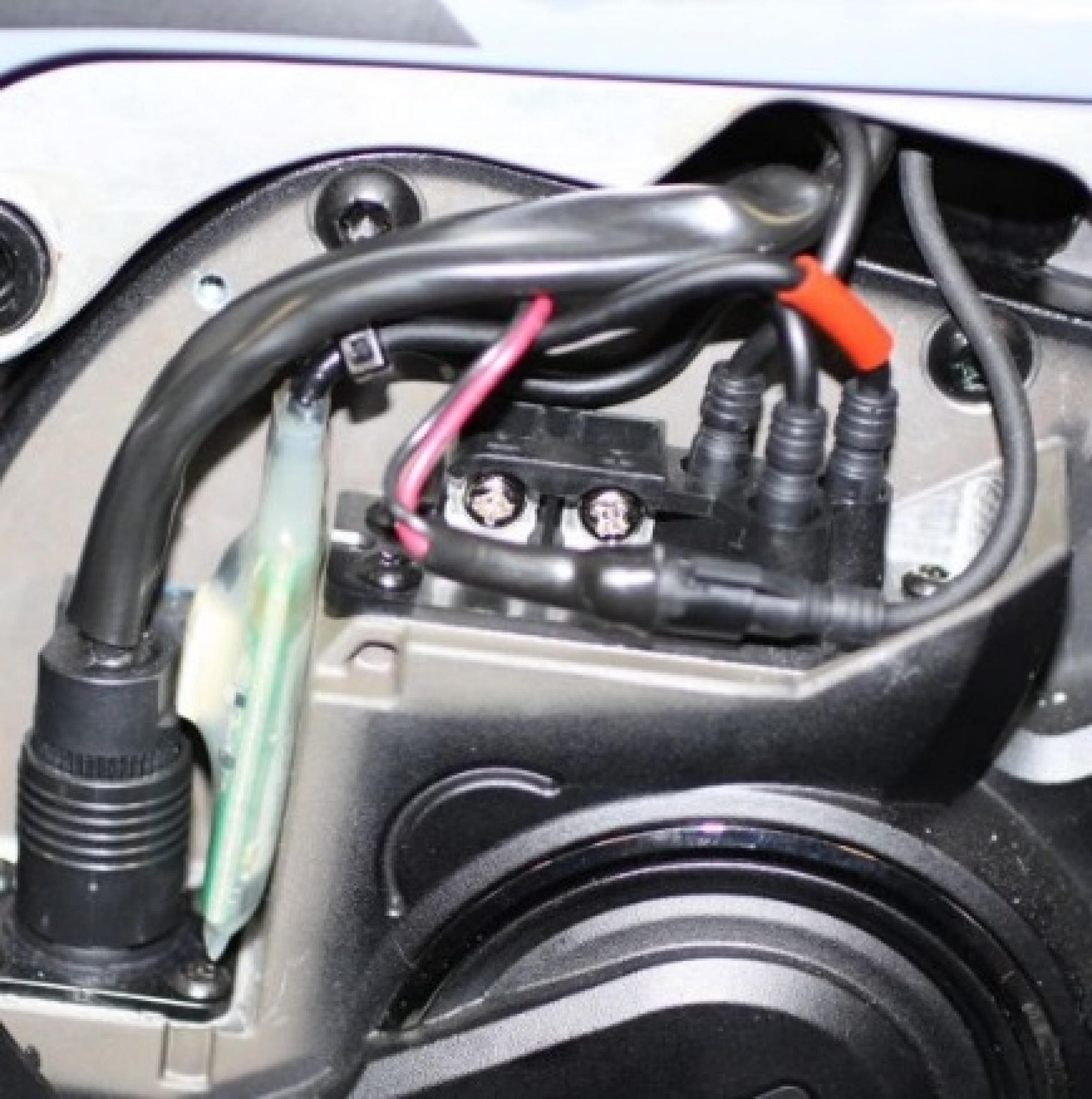

③ Connect the speed sensor to the MSO unit and the MSO unit to the motor unit using corresponding connectors. Connect red power cable to positive light clamp. Tighten the screw of the clamp.

④ Place the MSO in a proper position and optionally, fasten the wiring using the electrical ties. Re-attach the plastic cover and the bike is ready to go.

Manufacturer

PearControl s.r.o.

Příkopy 1889

393 01 Pelhřimov

CZECH REPUBLIC

Technical parameters

Dimension without wiring: 21 x 40 x 12mm

Supply voltage range: 5 - 15 V

Maximum current consumption: 100 mA

Maximum power usage: 1.5W

Mass: cca 5 g

The voltage is lower then 20 V in all device and on I/O pins too

Legislation

The manufacturer reserves the right to make changes. This manual is an integral  part  of  the  equipment  sold.  By  using  the  equipment  PearTune MSO its user agrees that he will use the modified e bike in accordance with the applicable legislation of the target country and so does even off-road; therefore, he is free to use it only on his own land or on land designated for  that  purpose.  The  user  also  acknowledges  that  the  operation  of bicycles outside their own land or land designated for this purpose with deactivated,  but  installed  equipment  PearTune  MSO  may  not  be  in compliance  with  legislation.  The  manufacturer  does  not  warrant  non-infringement of bicycle warranties or impossibility of damage or blockage of the e-bike system. The manufacturer disclaims liability for any damages, whether  in  health  or  property  associated  with installing  or  using this product.

The  manufacturer  holds  the  certificate  of  electromagnetic  compatibility testing  -  Compliance  with  EU  regulations  (CE  marking)  aswell  as  the certificate of restriction of the use of Hazardous Substances (RoHS label).
